Utilities#

class portfolio_plan.utils.plot_lines(data: Series, scale_x: bool = True, periods: List[Period] | None = None, variant: Literal['main', 'moon', 'dawn'] = 'dawn')#

Bases:

Parameters:

data (pd.Series) – Data in long form, with multiindex, first level “symbol”, second level “date”.
scale_x (bool) – Whether to include a date scale on the x axis For data which has uneven frequency, it is recommend to set to False and define the scale manually. Defaults to True
periods (List[Period] | None) – If a list of Period is provided, transparent rectangle will be drawn on each period.start, period.end Defaults to None
variant (Literal["main", "moon", "dawn"]) – Refer to portfolio_plan.visualisation.theme_rose_pine

class portfolio_plan.utils.plot_prices(data: Series, scale_x: bool = True)#

Bases:

A wrapper for plot_lines()

class portfolio_plan.utils.plot_returns(data: Series, scale_x: bool = True)#

Bases:

A wrapper for plot_lines(), adds a facet layer. Each symbol is facetted in order to improve readability of the chart.

class portfolio_plan.utils.plot_cumulative_returns(data: Series, scale_x: bool = True, periods=typing.Optional[typing.List[portfolio_plan.utils.Period]])#

Bases:

A wrapper for plot_lines()

class portfolio_plan.utils.plot_allocation(weights: Weights, variant: Literal['main', 'moon', 'dawn'] = 'dawn', base_size: int = 11)#

Bases:

Plot a single allocation.

Parameters:

weights (Weights) – A dictionary representing the allocation of weights.
variant (Literal["main", "moon", "dawn"]) – The color variant to use for the plot.

Returns:

A ggplot object representing the allocation.

Return type:

ggplot

from portfolio_plan.utils import plot_allocation, plot_allocations, Period
from portfolio_plan import Weights

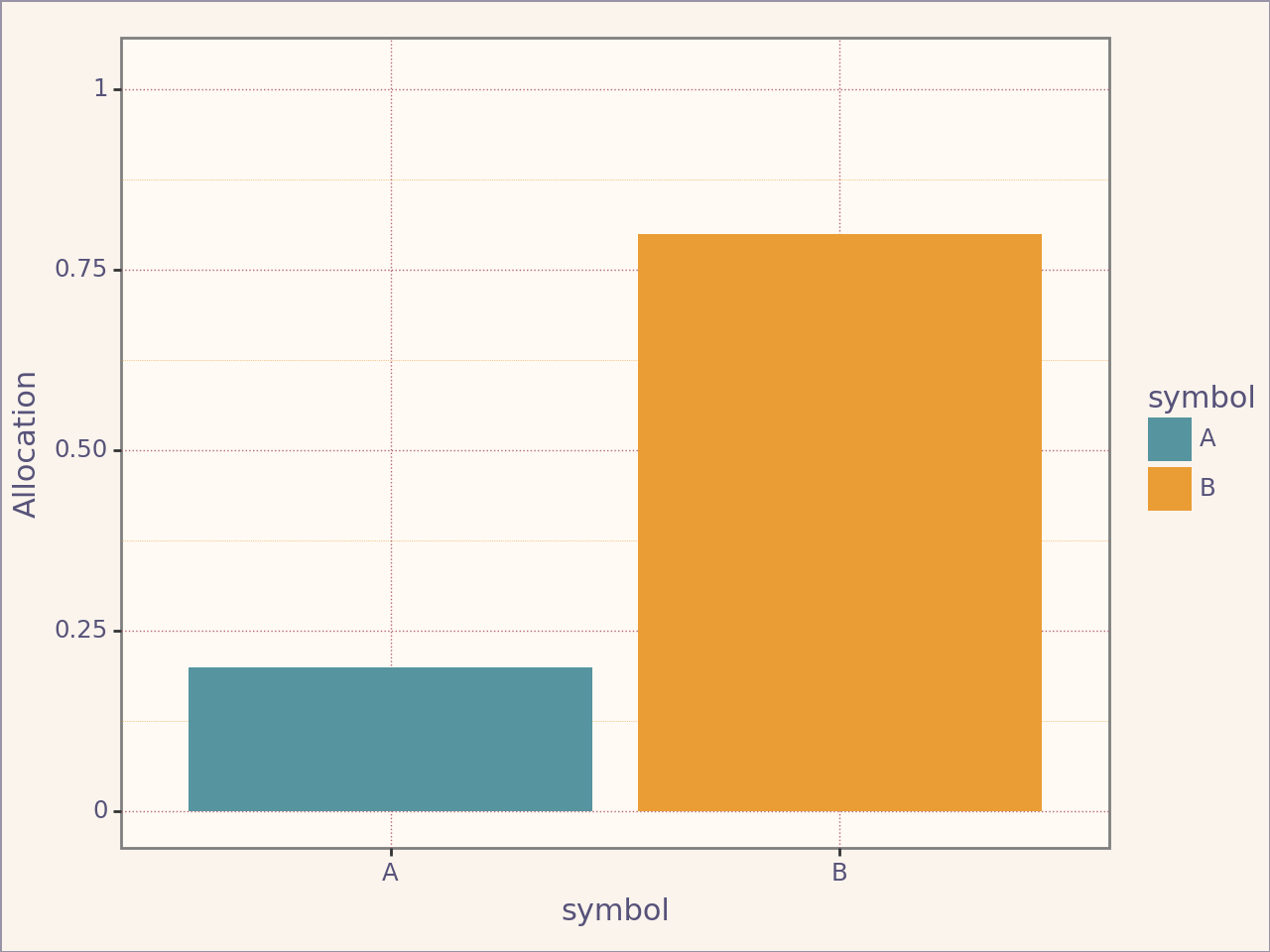

weights = Weights(A=0.2, B=0.8)

p = plot_allocation(weights)

../_images/adf957f78f0a252fb7df58871e4711296cfbcdfa931fb2cc030041ccf187d1f0.png

<Figure Size: (640 x 480)>

from datetime import datetime


weights_list = [
    Weights(A=0.4, B=0.3, C=0.3),
    Weights(A=0.5, B= 0.2, C=0.3),
]
periods = [
    Period(
        start=datetime(2025, 1, 1),
        end=datetime(2025, 6, 30),
        frequency=None,
    ),
    Period(
        start=datetime(2025, 7, 1),
        end=datetime(2025, 12, 31),
        frequency=None
    ),
]

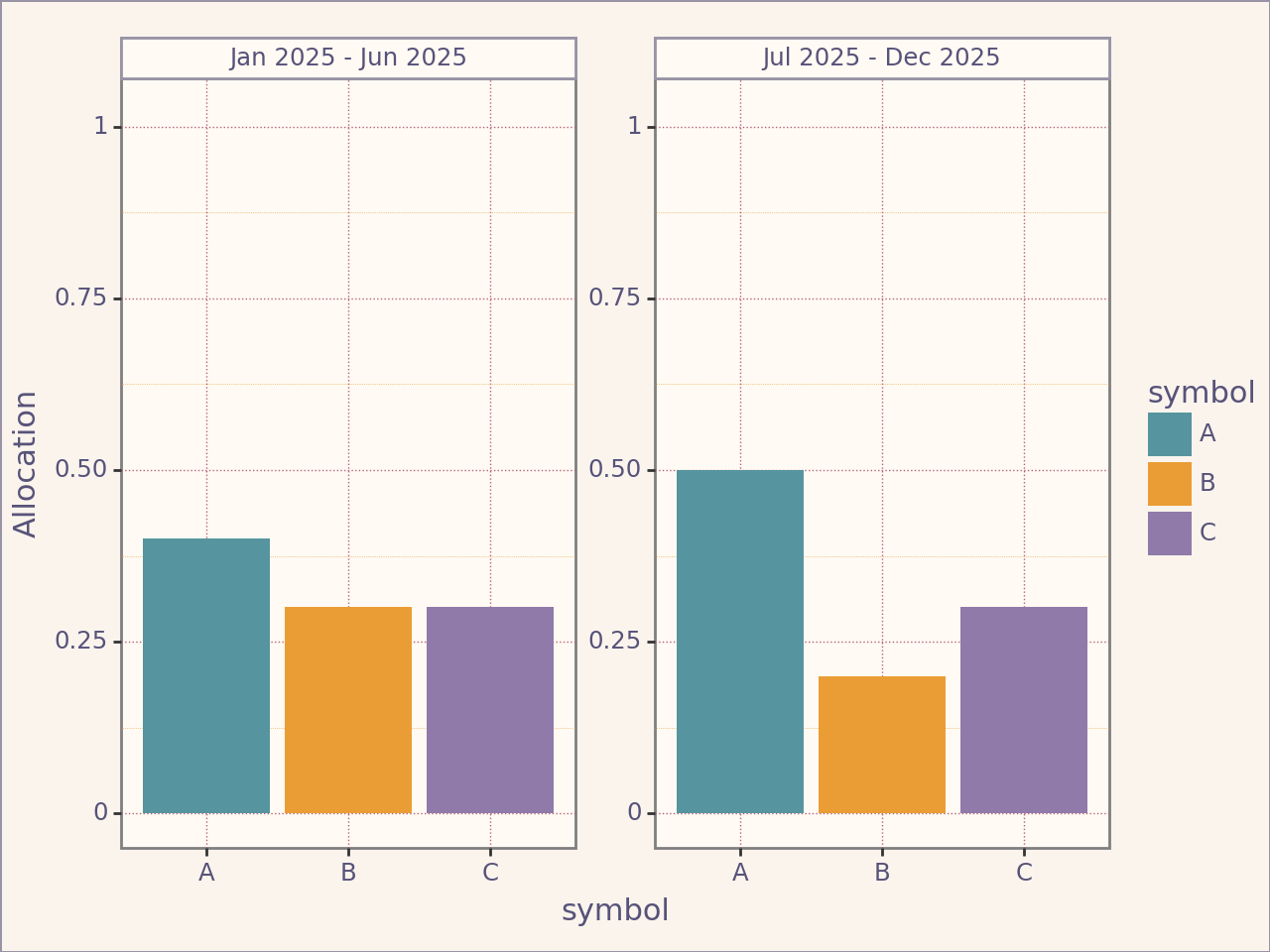

plot = plot_allocations(weights_list, periods, variant="dawn")
plot

../_images/149aa6e670d95eb992e5ef8549bc61c3ea285f1d0981385f8b86bd869ebcaded.png

<Figure Size: (640 x 480)>

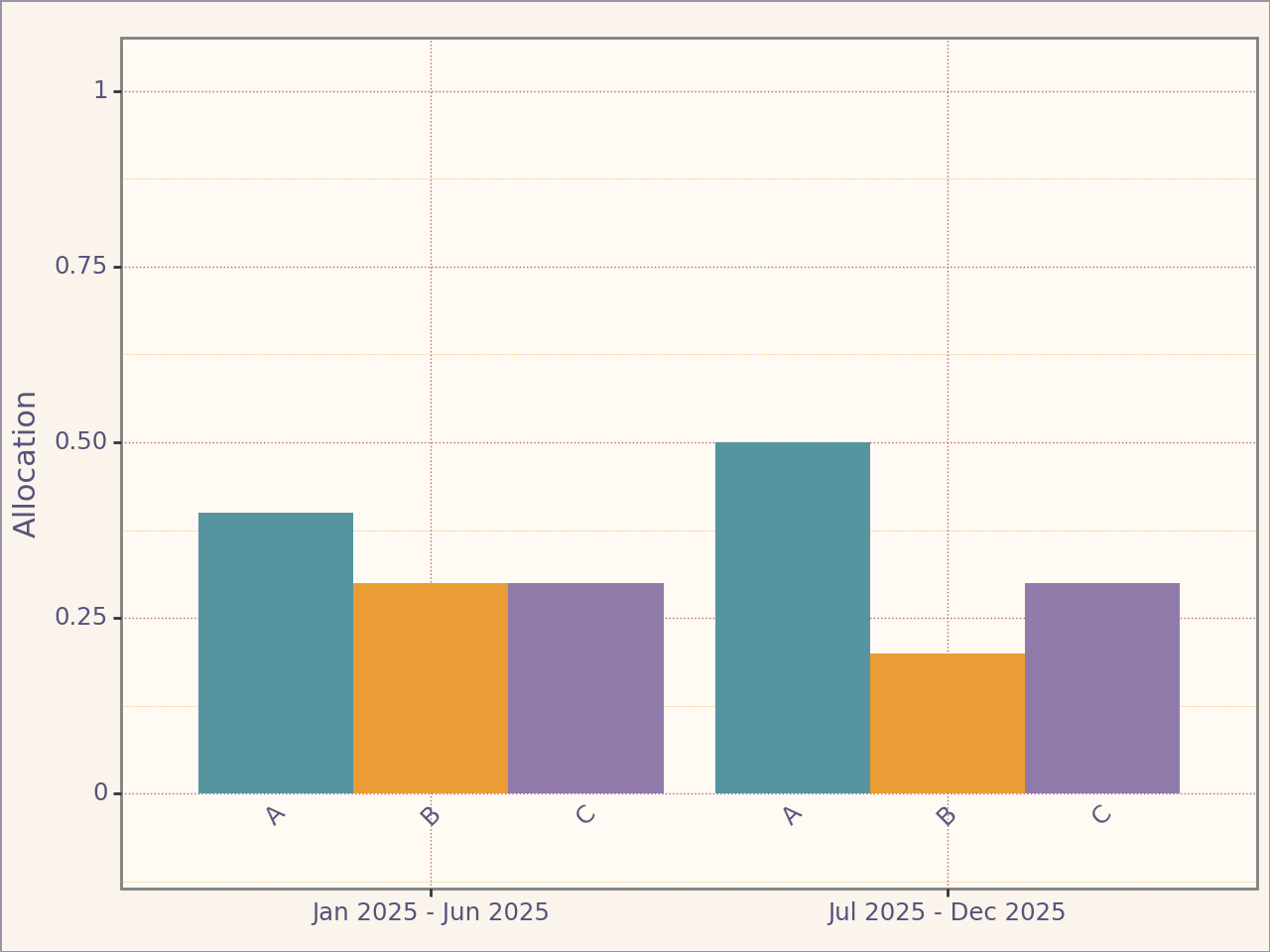

from portfolio_plan.utils import plot_allocations2


plot = plot_allocations2(weights_list, periods, variant="dawn")
plot

../_images/aa1f503a554d6967d3866758d8a06086e73c2b1ed793983b47cf0798e32655c5.png

<Figure Size: (640 x 480)>
